Linear unit RK MonoLine MT

The new linear unit with Omega drive concept has been added to the MonoLine product range and impresses with very good technical data

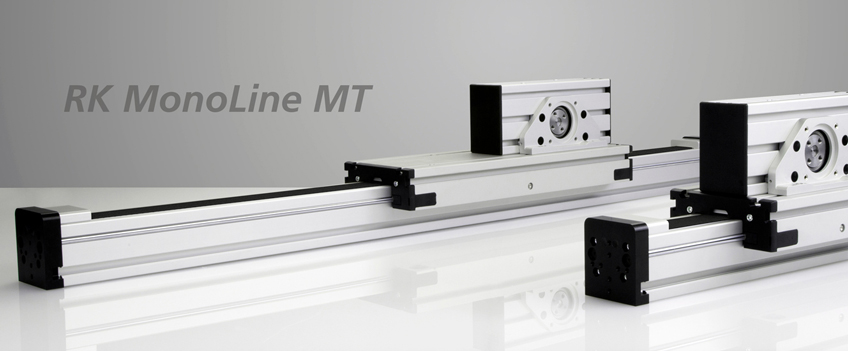

RK Monoline MT – linear unit with Omega drive

The new member of the RK Monoline product line is based on the roller guide concept of the RK MonoLine Z 80, but has a different drive concept: on the RK Monline MT, the timing belt does not circulate, but is driven in the area of the guide carriage. That is why an Omega drive is referred to. The tried-and-tested variable mounting concept allows the motor position to be changed subsequently for almost all motors available on the market. Compact dimensions facilitate high speeds and high positioning accuracy and repeatability – in particular for use as a vertical axis in a multi-axis system with travelling base profile and stationary carriage/motor. As a horizontal axis with a rated load on the carriage, on the other hand, extremely long strokes can be achieved. A further typical application is use as a moving axis.

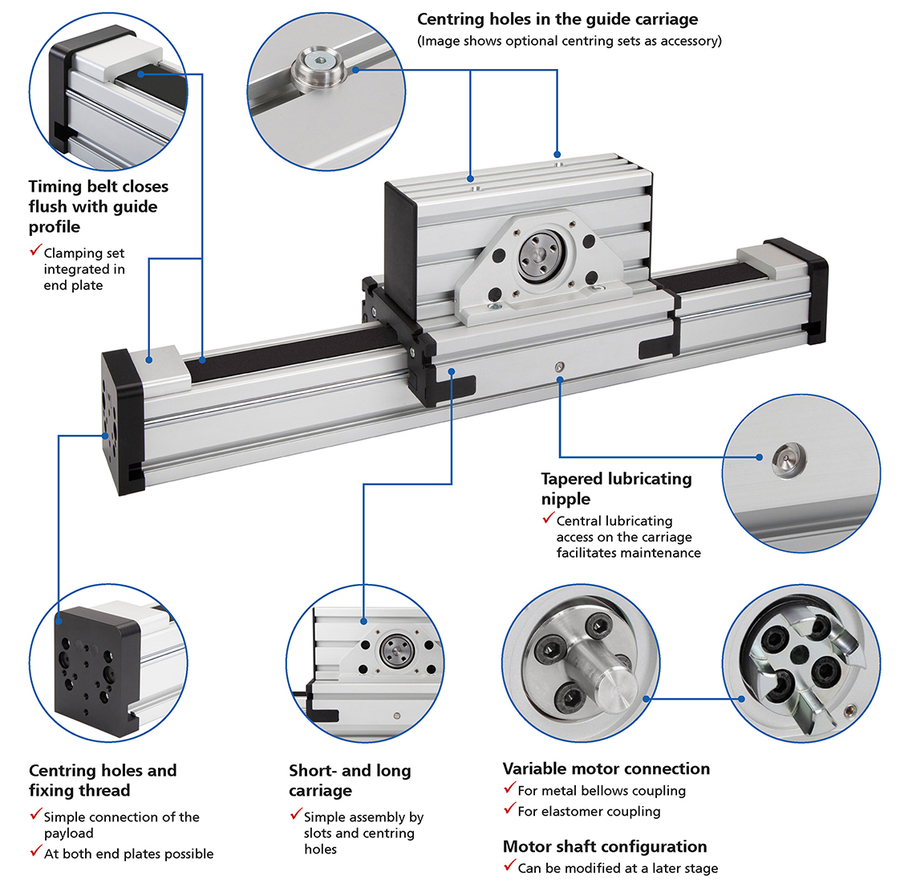

Features linear unit RK MonoLine MT
